1,000 Rutherford Engines: Metal AM Achieves Serial Production in Aerospace Propulsion

The old way: a single rocket engine required months of casting, machining, and assembly, with each unit costing millions and demanding separate supply chains for the combustion chamber, injectors, pumps, and valves. The new way: all of those components printed as a unified set of Inconel parts in roughly 24 hours, qualified, assembled, and delivered for flight. Rocket Lab has now done this 1,000 times.

The company's 1,000th Rutherford engine - the world's first 3D-printed, electric pump-fed orbital rocket engine - rolled off the production line at Rocket Lab's Long Beach, California facility around May 15, 2026 (VoxelMatters, May 16, 2026). The milestone makes the Rutherford the most-produced fully additively manufactured rocket engine in existence, and the strongest evidence to date that metal AM can support genuine serial production in aerospace propulsion - not just prototyping, not just low-rate manufacturing, but sustained, repeatable, flight-qualified output.

From 2013 Lab Concept to 1,000 Units

The engine that would define Rocket Lab's approach to manufacturing began development in 2013 (VoxelMatters, May 16, 2026). At that point, using additive manufacturing for an entire cryogenic engine's core components was a fringe thesis. Most propulsion programs treated AM as a prototyping shortcut or a niche solution for single-piece injectors. Rocket Lab embedded it from the start as the primary production method.

The bet paid off in January 2018, when the Rutherford made its orbital debut aboard the Electron launch vehicle (VoxelMatters, May 16, 2026). From that first flight, the company began scaling production: early builds turned out roughly one engine per month, but by 2026 the line had reached a pace closer to one engine every 30 hours of combined print time across its fleet of EOS, Nikon SLM Solutions, and Renishaw systems. The 1,000th unit represents a production ramp of more than 10x over the program's life.

This is aerospace hardware qualification at its most demanding - not a single certification event but a sustained production campaign spanning thirteen years from whiteboard concept to serial output. Where many AM propulsion programs stall at the single-engine demonstration or the SBIR-funded prototype, Rocket Lab pushed through the full cycle: concept, qualification, flight heritage, and then the unglamorous work of scaling the production line to repeatable output.

The 24 kN Engine With No Casting Supply Chain

The Rutherford itself is a compact piece of engineering: each sea-level engine produces 24 kN (5,500 lbf) of thrust and weighs just 35 kg (VoxelMatters, May 16, 2026). Those numbers are modest by rocket engine standards. What matters is how the engine gets built.

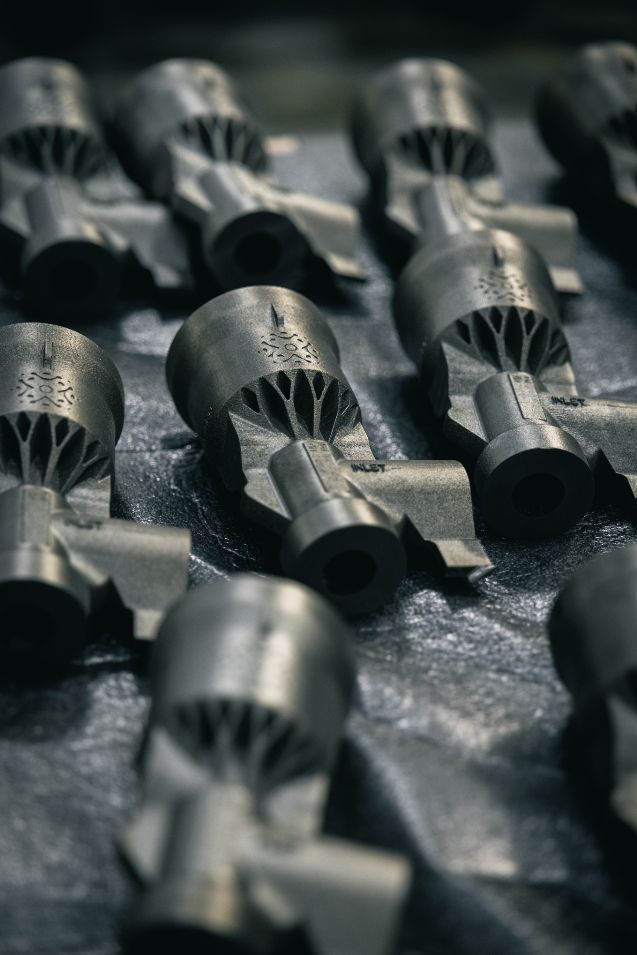

The combustion chamber, injectors, pumps, and propellant valves are all additively produced, then assembled with a brushless DC electric motor that drives the propellant pumps - a configuration that replaces the gas turbine systems used in conventional rocket engines with a simpler, lighter electric drive train (VoxelMatters, May 16, 2026). There is no casting foundry in the supply chain. No multi-week machining cycle for complex internal coolant channels. The print job collapses what would normally be dozens of supplier relationships into a single production floor.

This vertical integration - AM machines, metal powders from Carpenter Technology, post-processing, inspection, and final assembly all under one roof - is the production model that the 1,000th engine validates. It follows the same vertically integrated production logic that service bureaus have pursued in polymer printing, but applies it to flight-critical metal hardware at a level of qualification rigor that few AM production lines have achieved.

Cluster Reliability as the Real Test

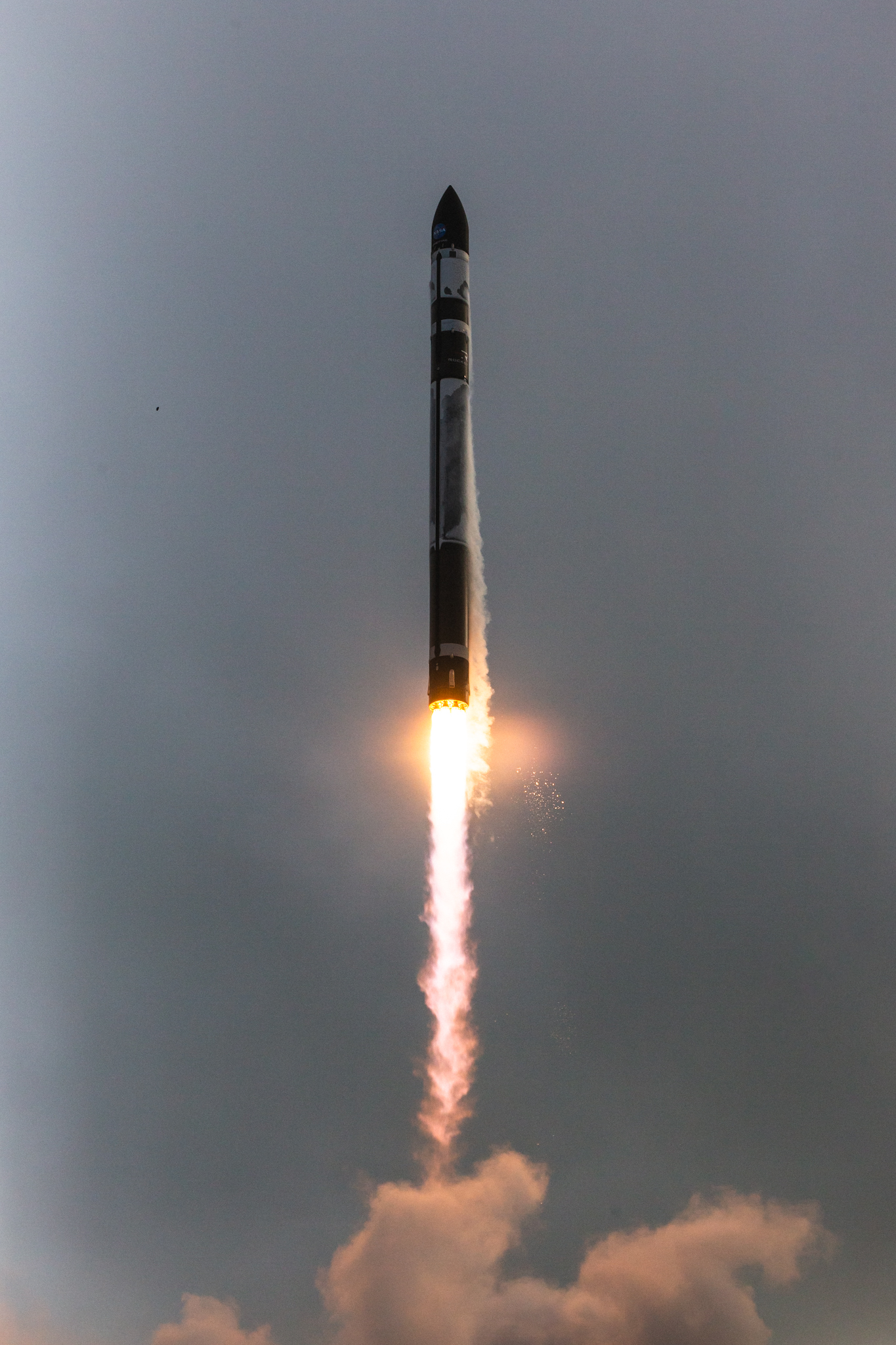

A single printed engine is a demonstration. An entire cluster of printed engines firing in synchronized formation, launch after launch, is a production system. Electron's first stage uses nine sea-level Rutherford engines arranged in a cluster, with all nine firing simultaneously during ascent and each operating within tight thrust and timing tolerances. A single outlier engine can abort a mission. The fact that Rocket Lab has flown more than 800 Rutherford engines to space across 70+ launches with no AM-related mission failures is the real qualification document - more persuasive than any standards paper or certification filing.

The parallel to watch here is Agnikul Cosmos, which on May 19, 2026, successfully test-fired a cluster of four 3D-printed semi-cryogenic engines - India's first such test - with each engine printed as a single piece of Inconel hardware (India Today, May 19, 2026). Agnikul is roughly where Rocket Lab was in 2017: AM-first engine design, vertical integration, cluster testing achieved, but not yet at orbital flight or serial production. The playbook is the same. The question is whether Agnikul can execute the 8–10 year production ramp that followed.

What Serial Production in Aerospace Does and Does Not Prove

The 1,000th Rutherford is a genuine milestone for metal AM. But the term "serial production" needs scope discipline. The Rutherford is a 24 kN engine for a small launch vehicle. Scaling the same AM production model to larger engines - Rocket Lab's own Archimedes (733 kN per engine, targeting 20 reuses) for the Neutron rocket - has not yet been demonstrated at comparable volume (VoxelMatters, May 16, 2026). Larger builds mean longer print times, different thermal management during the build, and different post-processing and inspection workflows.

There is also the question of production rate relativity. ~200 engines per year is impressive by aerospace standards - most rocket programs never reach three-digit production of any single engine type. But it is not serial production by automotive or consumer electronics metrics, where annual volumes run in the millions of units. The serial production claim is real, but it is production relative to aerospace's own modest denominator. Claims that this milestone "proves AM can replace conventional manufacturing at scale" overextend the evidence.

A separate risk: the Rutherford's electric pump-fed architecture eliminates the turbopump - the most complex single component in a conventional rocket engine. That design choice simplifies both the print job and the assembly process. Programs that need to print turbopump-based engines face a significantly more difficult AM qualification path.

Archimedes, Defense Propulsion, and the AM Export Model

Rocket Lab's immediate challenge is transferring the AM production discipline built on the Rutherford line to the Archimedes engine for Neutron. Archimedes operates at 30x the Rutherford's thrust and must survive 20 reuses. If Rocket Lab can replicate even a fraction of the Rutherford's production cadence on a much larger engine, the aerospace AM thesis moves from proven-for-small-launch to proven-for-medium-launch.

Beyond Rocket Lab, the signals are multiplying. Beehive Industries secured a $29.7M USAF contract to qualify its 3D-printed Frenzy 8 and Frenzy 6 jet engines for uncrewed defense systems (3D Printing Industry, 2026), extending the AM serial production logic from orbital propulsion to jet engines. LEAP 71 and HBD demonstrated a 200 kN monolithic aerospike engine at TCT Asia in March 2026. The model is spreading: AM-first propulsion design, vertically integrated production, and qualification through flight or firing test data rather than traditional casting supply chains.

The 1,000th Rutherford engine is not an endpoint. It is the benchmark that every other AM propulsion program will now be measured against. The question for the next decade is not whether AM can make a flight-weight rocket engine - that has been answered. The question is how many programs can replicate the production discipline that turns a printed part into a reliable, repeatable, economically viable flight engine at scale.
