BLT's Titanium 3D Printed Hinge for OPPO Find N6: Consumer Electronics AM Hits Production Economics

13 Parts Into One: How BLT's Titanium Hinge Solved the Foldable Crease

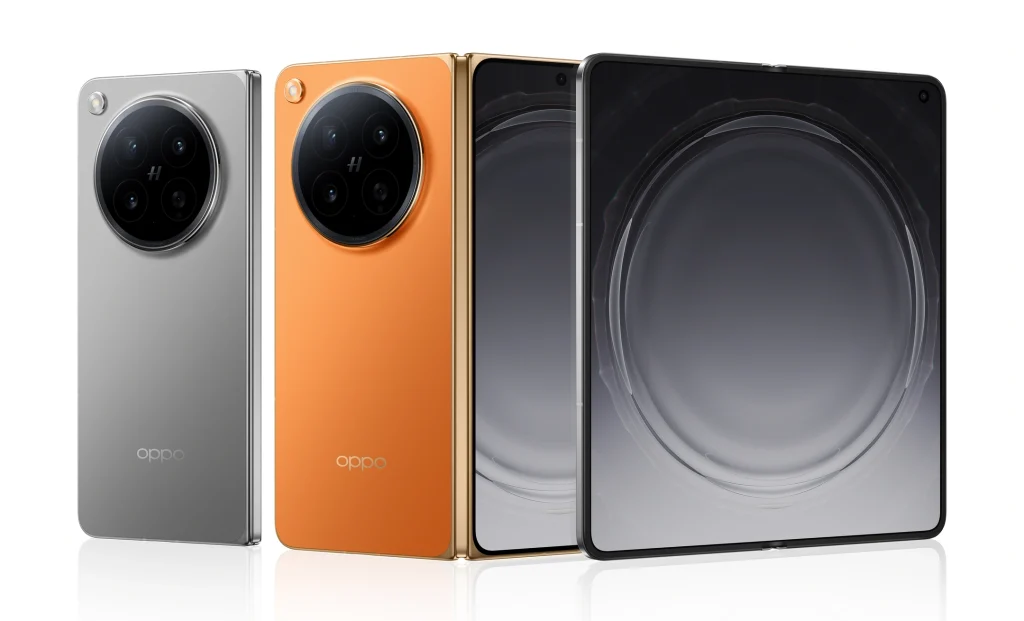

600,000 TÜV Rheinland folding cycles. A hinge surface variance of 0.05mm - down from the 0.2mm industry standard. One single titanium wing plate replacing 13 individual components. These are the numbers behind the OPPO Find N6, which launched globally on March 17, 2026, with a second-generation 3D printed hinge developed by Bright Laser Technologies (BLT). This is not a prototype or a limited pilot run. It is a shipped consumer product, in volume, with a certified durability rating that exceeds the typical five-year lifespan of a foldable phone.

The Find N6 hinge represents the clearest production-validated evidence yet that metal additive manufacturing has reached the cost-performance point needed for high-volume consumer electronics. BLT's laser powder bed fusion (LPBF) process builds the hinge's wing plate as a single titanium structure, eliminating the assembly tolerances, fastener points, and failure modes inherent in multi-component hinges. The result, per OPPO's product materials, is 50% better wing plate flatness compared to the Find N5 generation - the first BLT-printed hinge from 2025 that proved the concept but did not fully address crease formation.

The 3D Liquid Printing Step That Changes Surface Economics

The headline technical innovation in the Find N6 hinge is not the LPBF build itself - it is the post-process BLT calls "3D Liquid Printing." After the titanium wing plate comes off the printer, the part undergoes 20 or more cycles of UV-cured custom photopolymer droplet deposition, each cycle leveling microscopic surface irregularities that remain after LPBF. The process reduces hinge surface variance from 0.2mm to 0.05mm, a 75% improvement, according to coverage from 3D Printing Industry (March 2026).

This matters because the crease in a foldable phone is not a display problem - it is a hinge geometry problem. When the hinge's mating surfaces deviate from flat by more than a few hundredths of a millimeter, the display accumulates uneven stress at the fold line. Over thousands of cycles, that stress differential manifests as a visible crease. BLT's approach addresses the root cause: surface precision at the interface between the hinge's moving parts.

The 3D Liquid Printing step adds cycle time and cost to each hinge. BLT and OPPO have not disclosed per-unit economics, but the fact that the process made it into a mass-produced flagship device - not a limited-edition or luxury variant - suggests the cost increment is acceptable at the Find N6's price tier. The question for future generations is whether BLT can eliminate the post-process step entirely through improved LPBF surface finish, or whether 3D Liquid Printing becomes a permanent fixture in the consumer electronics AM workflow.

From Apple Watch Cases to Foldable Hinges: BLT's Consumer Electronics Pivot

BLT's role in the Find N6 is not an isolated win. The company is also the reported supplier of 3D printed titanium cases for the Apple Watch Series 11, a program that saved over 400 metric tons of titanium in 2025 by using 50% less raw material than conventional forging, per 3D Printing Industry's coverage of Apple's disclosed figures. That program is structural and cosmetic - the Watch case does not move, hinge, or bear cyclic load. The OPPO hinge is a precision mechanical component that must survive 600,000 folding cycles (TÜV Rheinland Minimized Crease Certification) and up to 1 million folds (Reliable Folding Certification).

The progression from cosmetic to functional consumer electronics AM is the real story. Apple proved AM can work for static titanium parts at scale. BLT and OPPO have now proven it can work for dynamic, load-bearing parts at scale. The next logical step is a foldable iPhone - rumored for late 2026 or 2027, with Foxconn trial production reportedly underway (MacRumors, April 2026). If Apple enters the foldable market, BLT is the incumbent AM supplier with a production-validated titanium hinge workflow. That is a competitive position no other AM OEM currently holds.

Prior Art: How the Find N6 Differs from the Find N5 and Honor's CNC Approach

The Find N5 (February 2025) was the first OPPO phone with a BLT 3D printed titanium hinge. It was 26% smaller than its predecessor and 36% more rigid, but it did not solve the crease problem. The Find N6 adds three specific improvements: the 3D Liquid Printing post-process for surface precision, Auto-Smoothing Flex Glass for 82% less crease formation over time, and a redesigned wing plate geometry that achieves 50% better flatness.

The comparison with Honor's Magic V2 (July 2023) is instructive. Honor used CNC-machined titanium for its hinge - a subtractive process that cannot produce the lattice geometries BLT achieves with LPBF, and that requires multiple machined parts to be assembled rather than consolidated into one. BLT's 13-to-1 part consolidation eliminates assembly tolerances entirely. The hinge's precision is determined by the printer and the post-process, not by the fit of 13 separate components.

The Bear Case: Scale, Confirmation, and Geopolitical Risk

Three counter-signals limit the bullish reading of this event.

First, BLT's revenue base remains modest relative to the production volumes required to supply both Apple and OPPO simultaneously at consumer electronics scale. The company would need to roughly double its manufacturing capacity to serve both customers at volume without creating supply bottlenecks.

Second, Apple has not officially confirmed BLT as its Watch case supplier. The relationship is widely reported but unconfirmed by Cupertino. If Apple's foldable iPhone program goes to a different AM provider - or to in-house production - BLT loses the strategic advantage of being the incumbent.

Third, geopolitical headwinds are real and accelerating. The UK launched an inquiry into Chinese-made 3D printing equipment security risks in April 2026. NDAA §849 restrictions on Chinese AM equipment take effect December 18, 2026 - one year after enactment - potentially limiting BLT's ability to serve Western consumer electronics brands directly. BLT could supply parts from its Xi'an factory to Chinese OEM assembly lines that then export finished devices, but the equipment restriction creates uncertainty about long-term Western market access.

What the Find N6 Hinge Reveals About the Consumer Electronics AM Pipeline

The OPPO Find N6 hinge validates the consumer electronics AM adoption wave with concrete, verified production data. BLT has demonstrated cost control, process stability, production throughput, and OEM qualification across a single product generation - the four conditions that signal a genuine adoption wave rather than a one-off prototype.

The parallel with Apple's Watch case program sharpens the picture. Both programs use BLT's titanium LPBF production chain in the same 2025-2026 timeframe, but the OPPO hinge is a more demanding application - precision mechanical rather than cosmetic structural. The comparison shows AM advancing from cosmetic to functional roles in consumer electronics, which is the threshold the industry has been waiting for since the first Honor foldable used CNC titanium in 2023.

The closest analog to the Find N6 hinge in recent AM news is the Apple Watch case program - but that application is cosmetic, not mechanical. The OPPO hinge is the first production-validated precision mechanical AM part in consumer electronics at scale. That distinction matters for every AM OEM, every smartphone OEM, and every investor tracking the consumer electronics AM thesis.

The next 18 months will determine whether BLT's hinge workflow becomes the industry standard or a single-generation advantage. Apple's foldable decision, BLT's capacity expansion, and the NDAA §849 implementation timeline are the three variables to watch.
